| Specification | Detail |
|---|---|
| Industry type | Glass |
| Process | Laminating |
| Chamber Diameter | 2 to 3 m |
| Chamber Length | 4 to 12 m |
| Overall size | 5 × 14 × 4 × 4 m (L×W×H) |
| Height of the product | 1 to 2.5 m |
| Capacity of the Autoclave | 800 to 3000 m² |
| Medium used | Steam / Air |
| Heat Source | Electric heaters |
| Power consumption | 80 to 250 kW |
| Operating Pressure | 10 to 15 bar |
| Operating Temperature | 120 to 150°C |
| Pressure Build up Time | 10 to 20 mins |
| Charging Time | 15 to 25 mins |
| Holding Time | 60 to 120 mins |
| Discharging Time | 15 to 20 mins |
| Cycle time | 2 to 3 Hrs |
| Material Movement | Rail trolley |
| Capacity of the Trolley | 2 to 6 tons |
Incastt Machines

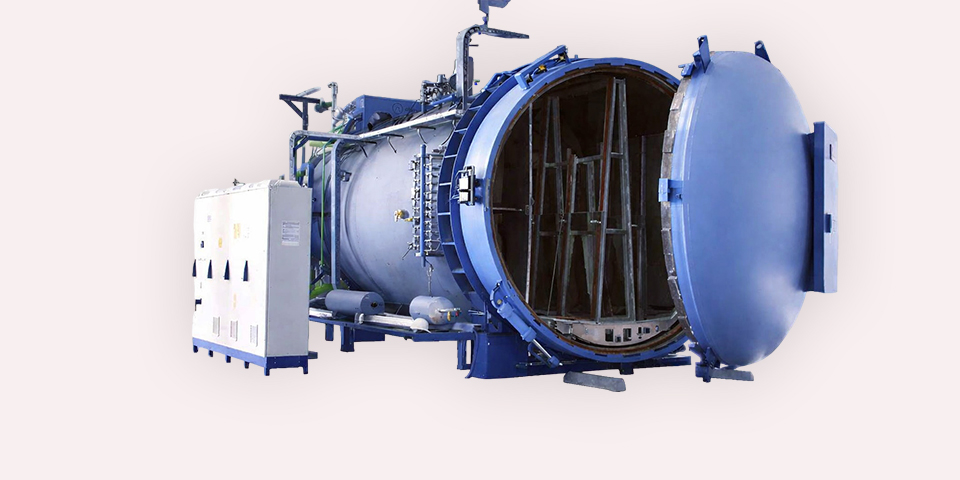

Glass Laminating Autoclave
Let’s Start Work Together
Please feel free to contact us. We will get back to you with 1-2 business days. Or just call us now.
0821-428 2039
sales@incastt.com
64/C4, Hebbal Industrial Area, Mysuru.
Incastt Machines manufactures advanced glass lamination autoclaves essential for producing laminated, bullet-resistant, and automotive glass. These autoclaves are available in a wide range of sizes and capacities, from compact units for automotive glass to large-scale systems for flat glass applications. They are designed for user-friendly operation and delivered as complete turnkey packages, including loading trolleys, vacuum systems, cooling units, and air compressor systems.
Incastt autoclaves are built in compliance with international standards and certified by recognized inspection bodies, reflecting our commitment to superior quality, dependable performance, and operational safety.
