| Specification | Detail |
|---|---|
| Industry type | Concrete Blocks |
| Process | High Pressure Steam Curing |
| Chamber Diameter | 2.5 to 3 mtrs |
| Chamber Length | 25 to 42 mtrs |
| Overall size | 28~45 x 3.5 x 4 mtrs (LxWxH) |
| Height of the product | 600 to 1200 mm |
| Capacity of the Autoclave | 25 to 40 Cu.m |
| Medium used | Steam |
| Heat Source | Coal / Gas / Electric Boiler |
| Power consumption | 20 to 60 kW |
| Operating Pressure | 10 to 14 bar |
| Operating Temperature | 180 to 200 deg C |
| Pressure Build up Time | 60 to 90 min |
| Charging Time | 20 to 30 min |
| Holding Time | 6 to 10 hours |
| Discharging Time | 20 to 30 min |
| Cycle time | 8 to 12 hours |
| Material Movement | Rail mounted trolley |
| Capacity of the Trolley | 10 to 25 tons per trolley |
Incastt Machines

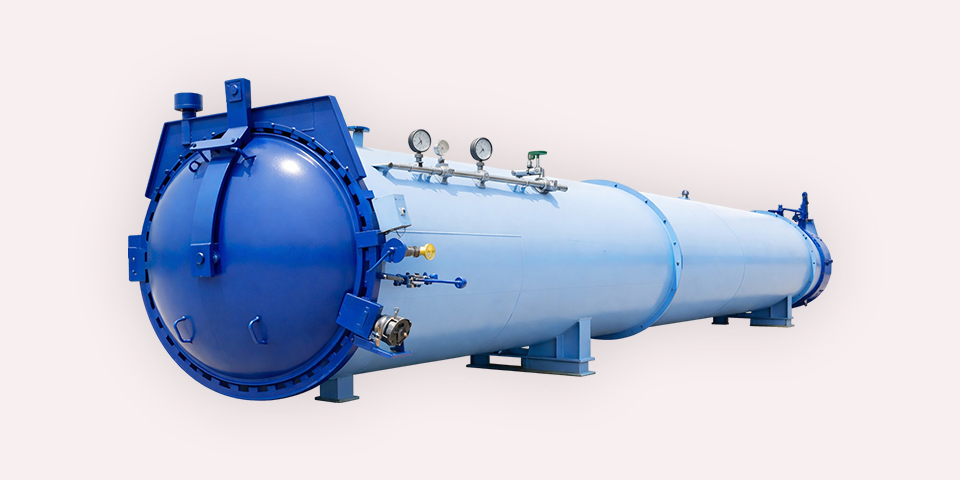

Concrete Curing Autoclave
Let’s Start Work Together
Please feel free to contact us. We will get back to you with 1-2 business days. Or just call us now.
0821-428 2039
sales@incastt.com
64/C4, Hebbal Industrial Area, Mysuru.
Incastt Machines manufactures high-performance AAC concrete autoclaves designed for efficient and reliable curing of AAC blocks and panels. Our systems provide uniform temperature and pressure control to ensure consistent product quality and minimal rejection rates.
Custom-built to suit plant capacities and constructed with high-quality materials and advanced insulation, Incastt Machines autoclaves deliver energy-efficient operation, durability, and long-term reliability for modern AAC production plants.
