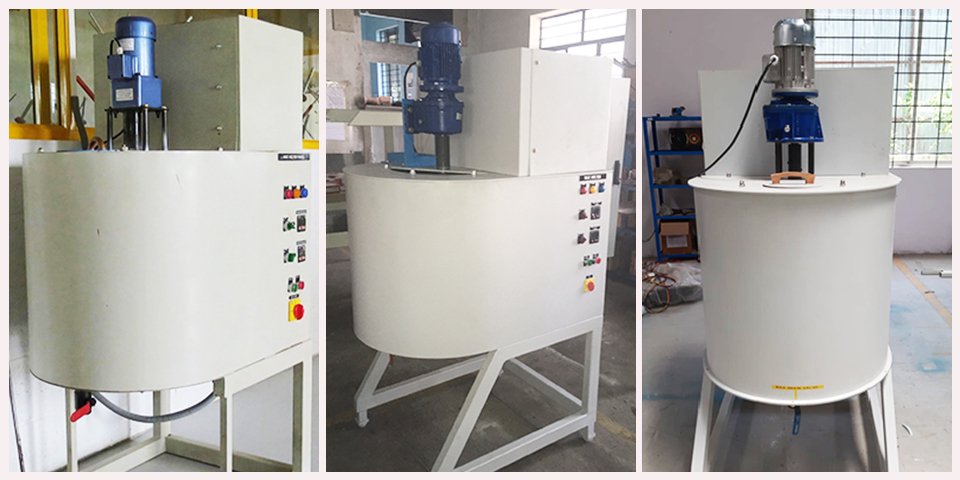

Wax Melting & Conditioning Machines
The WM Series is designed for efficient wax melting and conditioning, featuring precise temperature control and uniform blending to ensure consistent wax quality. Built with rugged construction and user-friendly controls, it is suitable for mid-size operations as well as high-volume investment casting production.
| Model | WM0101 | WM0201 |
|---|---|---|
| Melting Rate | 20 kg/hr | 30 kg/hr |
| Slab Melter Capacity | 30 kg | 30 kg |
| Conditioning Tank Capacity | 100 litres | 200 litres |
| Conditioning Tank Size | Ø500 mm × 525 mm (H) | Ø600 mm × 700 mm (H) |
Key Features:
Integrated Slab Melter
Efficiently melts solid wax and feeds it directly into the conditioning tank.
Continuous Conditioning
Ensures uniform wax temperature and consistent blending.
Precise Temperature Control
Independent PID controllers provide accurate temperature regulation.
High-Efficiency Insulation
Minimizes heat loss and improves energy efficiency.
Intuitive Control Panel
Digital temperature displays, status indicators, and emergency shutoff for easy operation.
Maintenance-Friendly Design
Easy access to heaters and heated drain valve simplifies servicing.
