| Model | Hot Volume |
|---|---|
| FF0302 | 1000 (D) X 1000 (W) X 1000 (H) |
| FF0301 | 1200 (D) X 1000 (W) X 1000 (H) |
| FF0303 | 1500 (D) X 1000 (W) X 1000 (H) |
Download our document to see specific data of the service and how we work.
Let’s Start Work Together
Please feel free to contact us. We will get back to you with 1-2 business days. Or just call us now.
0821-428 2039, +91 97402 07101
sales@incastt.com
64/E7, Hootagalli Industrial Area, Mysore – 570018.

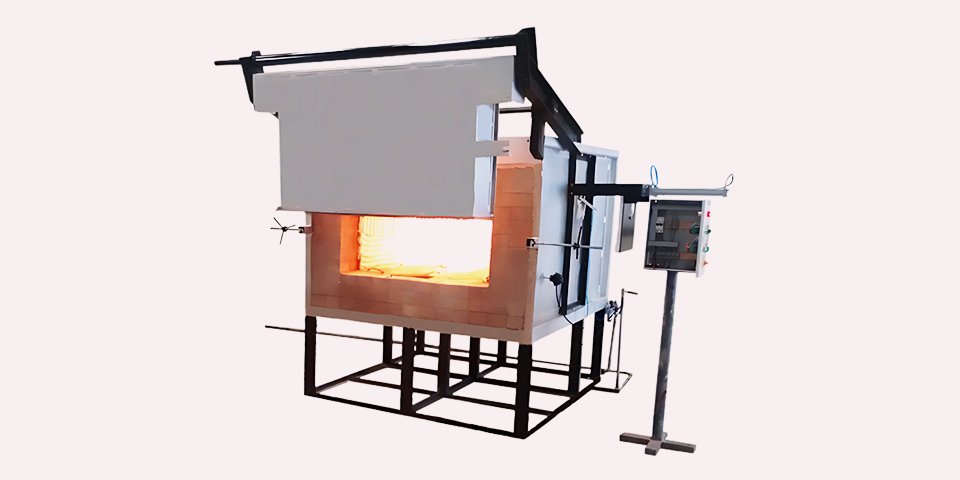

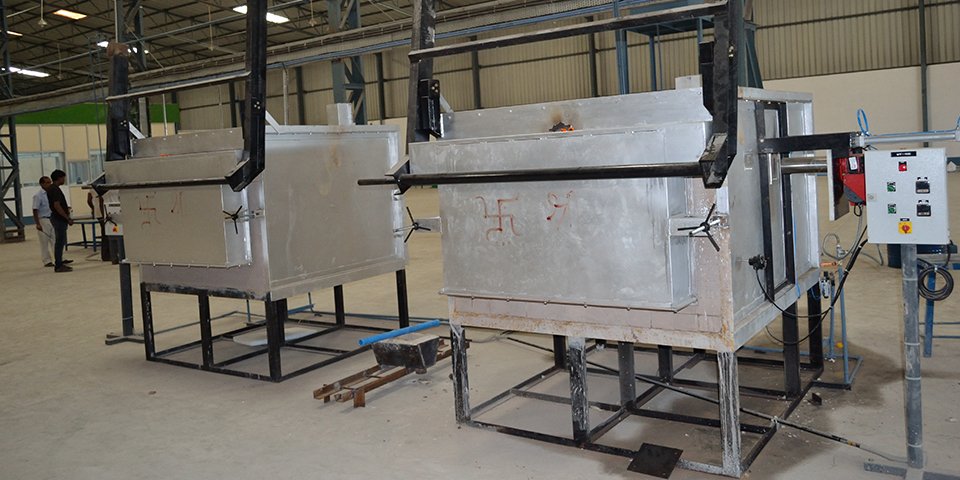

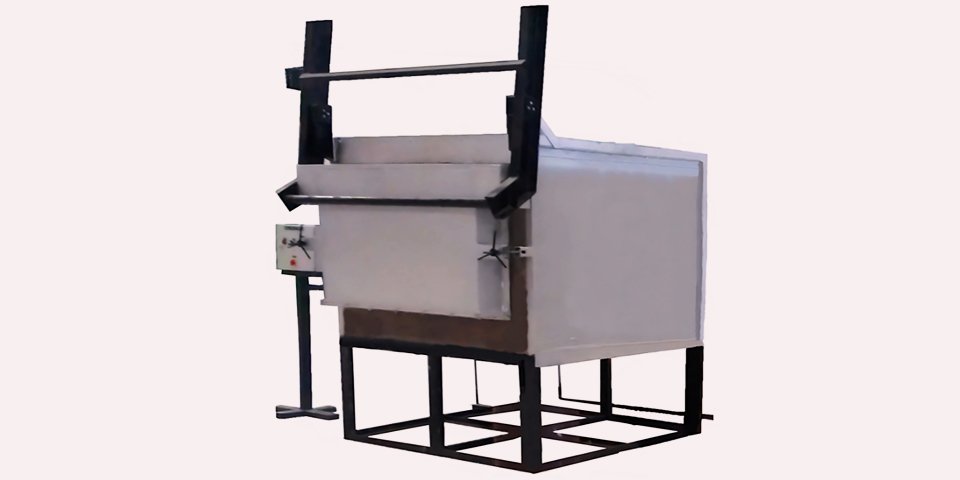

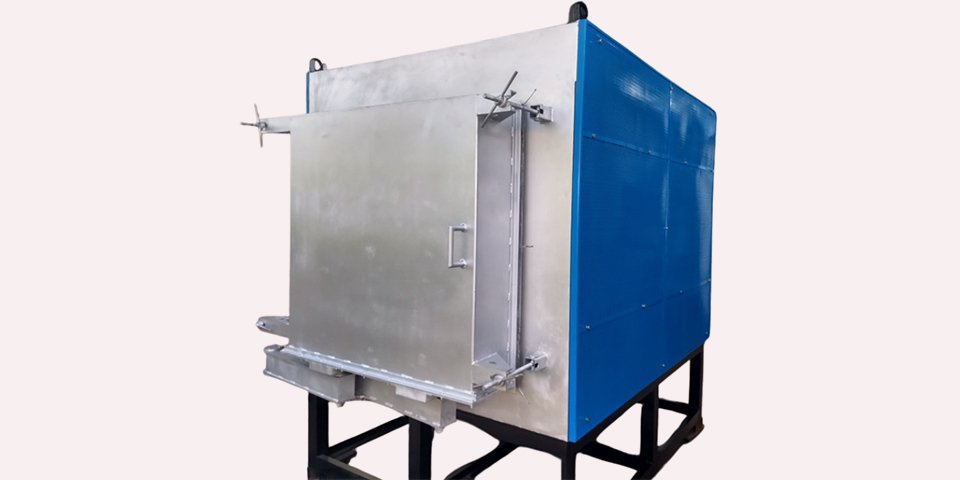

The Shell Firing Furnace is an electrically heated batch furnace designed for the controlled sintering of ceramic shells after dewaxing. It provides uniform high-temperature heating to develop the required shell strength and prepare moulds for metal pouring. With robust construction, precise temperature control, and easy operation, it delivers consistent results and efficient performance for modern investment casting foundries
The Shell Firing Furnaces are available in electric, gas-fired, and oil-fired configurations to suit diverse foundry requirements and operational preferences.
Electric
Oil Fired
| Model | Hot Volume |
|---|---|
| FF0101 | 900mm (D) x 1000mm (W) x 700mm (H) |
| FF0102 | 1200mm (D) x 1000mm (W) x 700mm (H) |
| FF0103 | 1500mm (D) x 1000mm (W) x 700mm (H) |
Key Features:
Robust Construction
Heavy-duty MS structure with ceramic fiber insulation ensures durability and thermal efficiency.
High-Temperature Performance
Operates up to 1050°C with efficient Kanthal A1 equivalent heating elements.
Precision Temperature Control
Operates up to 1050°C with efficient Kanthal A1 equivalent heating elements.
Optimized Furnace Design
: Fire-brick lining and vertical swing-up door provide stability, easy access, and safe operation.
Simple Operation
User-friendly controls enable quick and automatic temperature setting.
Foundry Compatibility
Suitable for operations involving loads up to 200 kg and easy integration with melting systems.
Spacious Chamber
Accommodates large or multiple ceramic shell moulds efficiently.
